Engine section – Engine (Cummins ISF3.8) EG - 115

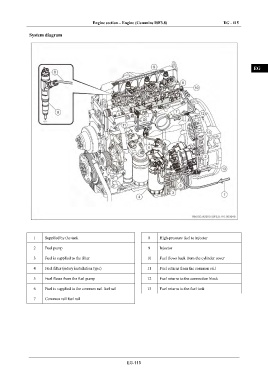

System diagram IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Supplied by the tank 8 High-pressure fuel to injector
2 Fuel pump 9 Injector
3 Fuel is supplied to the filter 10 Fuel flows back from the cylinder cover
4 Fuel filter (rotary installation type) 11 Fuel returns from the common rail
5 Fuel flows from the fuel pump 12 Fuel returns to the connection block
6 Fuel is supplied to the common rail fuel rail 13 Fuel returns to the fuel tank
7 Common rail fuel rail
EG-115
