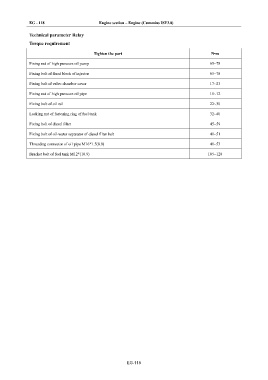

Page 634 - Foton Workshop Manual - Auman EST-M

EG - 118 Engine section – Engine (Cummins ISF3.8)

Technical parameter Relay
Torque requirement

Tighten the part N•m

Fixing nut of high pressure oil pump 65~78

Fixing bolt of fixed block of injector 65~78

Fixing bolt of valve chamber cover 17~23

Fixing nut of high pressure oil pipe 10~12
Fixing bolt of oil rail 22~30

Locking nut of fastening ring of fuel tank 32~40

Fixing bolt of diesel filter 45~59

Fixing bolt of oil-water separator of diesel filter belt 41~51

Threading connector of oil pipe M16*1.5(8.8) 40~53
Bracket bolt of fuel tank M12*(10.9) 105~128

EG-118
