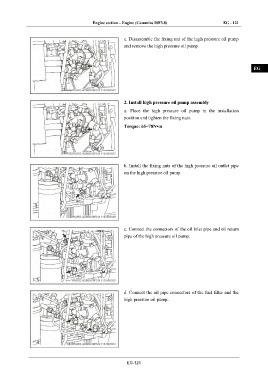

Engine section – Engine (Cummins ISF3.8) EG - 121
IN
e. Disassemble the fixing nut of the high pressure oil pump
and remove the high pressure oil pump.
DI
EG
TR
2. Install high pressure oil pump assembly AX
a. Place the high pressure oil pump in the installation
position and tighten the fixing nuts. FR
Torque: 65~78N•m
ST
BR
b. Install the fixing nuts of the high pressure oil outlet pipe
BW
on the high pressure oil pump.
EL
c. Connect the connectors of the oil inlet pipe and oil return
pipe of the high pressure oil pump.
d. Connect the oil pipe connectors of the fuel filter and the
high pressure oil pump.
EG-121
