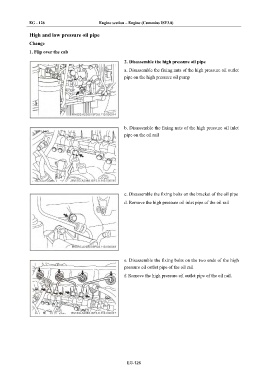

EG - 126 Engine section – Engine (Cummins ISF3.8)

High and low pressure oil pipe
Change
1. Flip over the cab

2. Disassemble the high pressure oil pipe

a. Disassemble the fixing nuts of the high pressure oil outlet
pipe on the high pressure oil pump

b. Disassemble the fixing nuts of the high pressure oil inlet
pipe on the oil rail

c. Disassemble the fixing bolts on the bracket of the oil pipe

d. Remove the high pressure oil inlet pipe of the oil rail

e. Disassemble the fixing bolts on the two ends of the high
pressure oil outlet pipe of the oil rail
f. Remove the high pressure oil outlet pipe of the oil rail.

EG-126
