Engine section – Engine (Cummins ISF3.8) EG - 129

IN

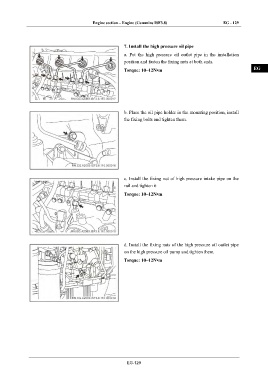

7. Install the high pressure oil pipe
DI
a. Put the high pressure oil outlet pipe in the installation

position and fasten the fixing nuts at both ends.
Torque: 10~12N•m EG

TR

AX

b. Place the oil pipe holder in the mounting position, install
the fixing bolts and tighten them. FR

ST

BR

BW

c. Install the fixing nut of high pressure intake pipe on the
rail and tighten it EL
Torque: 10~12N•m

d. Install the fixing nuts of the high pressure oil outlet pipe
on the high pressure oil pump and tighten them.
Torque: 10~12N•m

EG-129
