EG - 134 Engine section – Engine (Cummins ISF3.8)

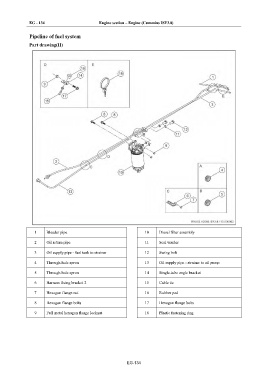

Pipeline of fuel system

Part drawing(II)

1 Bleeder pipe 10 Diesel filter assembly

2 Oil return pipe 11 Seal washer

3 Oil supply pipe - fuel tank to strainer 12 Swing bolt
4 Through hole apron 13 Oil supply pipe - strainer to oil pump

5 Through hole apron 14 Single-tube angle bracket

6 Harness fixing bracket 2 15 Cable tie

7 Hexagon flange nut 16 Rubber pad
8 Hexagon flange bolts 17 Hexagon flange bolts

9 Full metal hexagon flange locknut 18 Plastic fastening ring

EG-134
