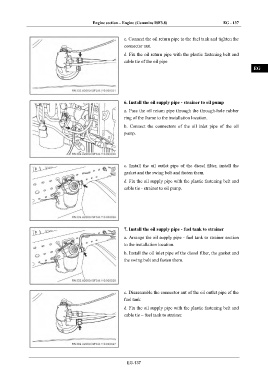

Page 653 - Foton Workshop Manual - Auman EST-M

Engine section – Engine (Cummins ISF3.8) EG - 137

IN
c. Connect the oil return pipe to the fuel tank and tighten the

connector nut.
DI
d. Fix the oil return pipe with the plastic fastening belt and

cable tie of the oil pipe
EG

TR

6. Install the oil supply pipe - strainer to oil pump AX

a. Pass the oil return pipe through the through-hole rubber
ring of the frame to the installation location. FR
b. Connect the connectors of the oil inlet pipe of the oil
pump. ST

BR

c. Install the oil outlet pipe of the diesel filter, install the
BW
gasket and the swing bolt and fasten them.

d. Fix the oil supply pipe with the plastic fastening belt and
EL
cable tie - strainer to oil pump.

7. Install the oil supply pipe - fuel tank to strainer

a. Arrange the oil supply pipe - fuel tank to strainer section
to the installation location.

b. Install the oil inlet pipe of the diesel filter, the gasket and
the swing bolt and fasten them.

c. Disassemble the connector nut of the oil outlet pipe of the
fuel tank

d. Fix the oil supply pipe with the plastic fastening belt and
cable tie – fuel tank to strainer.

EG-137
