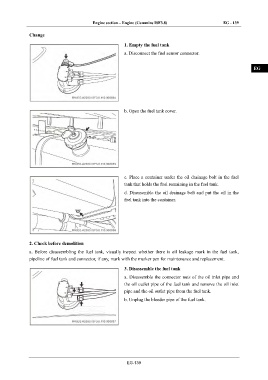

Engine section – Engine (Cummins ISF3.8) EG - 139

Change IN

1. Empty the fuel tank
DI
a. Disconnect the fuel sensor connector.

EG

TR

AX
b. Open the fuel tank cover.
FR

ST

BR

BW

c. Place a container under the oil drainage bolt in the fuel
tank that holds the fuel remaining in the fuel tank. EL

d. Disassemble the oil drainage bolt and put the oil in the
fuel tank into the container.

2. Check before demolition

a. Before disassembling the fuel tank, visually inspect whether there is oil leakage mark in the fuel tank,
pipeline of fuel tank and connector, if any, mark with the marker pen for maintenance and replacement.
3. Disassemble the fuel tank

a. Disassemble the connector nuts of the oil inlet pipe and
the oil outlet pipe of the fuel tank and remove the oil inlet
pipe and the oil outlet pipe from the fuel tank.

b. Unplug the bleeder pipe of the fuel tank.

EG-139
