EG - 144 Engine section – Engine (Cummins ISF3.8)

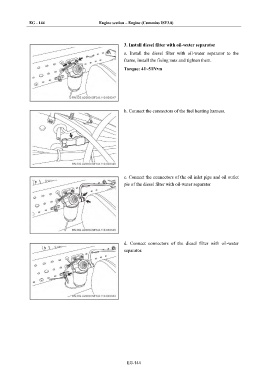

3. Install diesel filter with oil-water separator
a. Install the diesel filter with oil-water separator to the
frame, install the fixing nuts and tighten them.
Torque: 41~51N•m

b. Connect the connectors of the fuel heating harness.

c. Connect the connectors of the oil inlet pipe and oil outlet
pie of the diesel filter with oil-water separator

d. Connect connectors of the diesel filter with oil-water
separator.

EG-144
