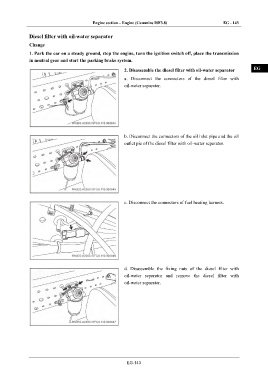

Engine section – Engine (Cummins ISF3.8) EG - 143
Diesel filter with oil-water separator IN
Change
1. Park the car on a steady ground, stop the engine, turn the ignition switch off, place the transmission DI
in neutral gear and start the parking brake system.
2. Disassemble the diesel filter with oil-water separator EG
a. Disconnect the connectors of the diesel filter with
oil-water separator. TR
AX
FR
b. Disconnect the connectors of the oil inlet pipe and the oil ST
outlet pie of the diesel filter with oil-water separator.
BR
BW
EL
c. Disconnect the connectors of fuel heating harness.
d. Disassemble the fixing nuts of the diesel filter with
oil-water separator and remove the diesel filter with
oil-water separator.
EG-143
