EG - 146 Engine section – Engine (Cummins ISF3.8)

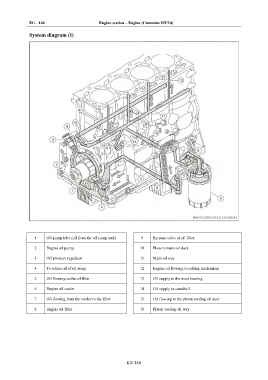

System diagram (I)

1 Oil pump inlet (oil from the oil sump tank) 9 By-pass valve of oil filter
2 Engine oil pump 10 Flow to main oil duct

3 Oil pressure regulator 11 Main oil way

4 To return oil of oil sump 12 Engine oil flowing to ceiling mechanism

5 Oil flowing to the oil filter 13 Oil supply to the main bearing

6 Engine oil cooler 14 Oil supply to camshaft
7 Oil flowing from the cooler to the filter 15 Oil flowing to the piston cooling oil duct

8 Engine oil filter 16 Piston cooling oil way

EG-146
