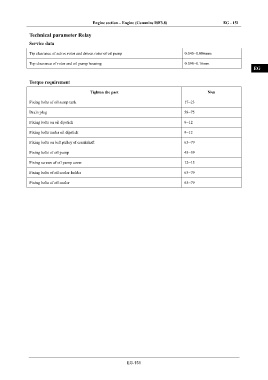

Engine section – Engine (Cummins ISF3.8) EG - 151
Technical parameter Relay IN
Service data
DI
Tip clearance of active rotor and driven rotor of oil pump 0.045~0.086mm
Top clearance of rotor and oil pump housing 0.098~0.16mm
EG
Torque requirement
TR
Tighten the part N•m
Fixing bolts of oil sump tank 17~23 AX
Drain plug 58~75
FR
Fixing bolts on oil dipstick 9~12
Fixing bolts under oil dipstick 9~12
ST
Fixing bolts on belt pulley of crankshaft 65~79
Fixing bolts of oil pump 45~59 BR
Fixing screws of oil pump cover 12~15
BW
Fixing bolts of oil cooler holder 65~79
Fixing bolts of oil cooler 65~79
EL
EG-151
