Engine section – Engine (Cummins ISF3.8) EG - 147

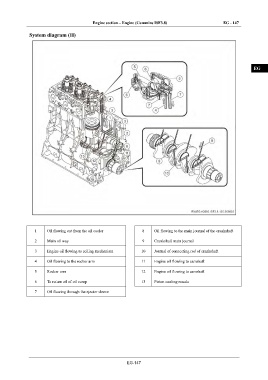

System diagram (II) IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Oil flowing out from the oil cooler 8 Oil flowing to the main journal of the crankshaft
2 Main oil way 9 Crankshaft main journal
3 Engine oil flowing to ceiling mechanism 10 Journal of connecting rod of crankshaft
4 Oil flowing to the rocker arm 11 Engine oil flowing to camshaft
5 Rocker arm 12 Engine oil flowing to camshaft
6 To return oil of oil sump 13 Piston cooling nozzle
7 Oil flowing through the ejector sleeve
EG-147
