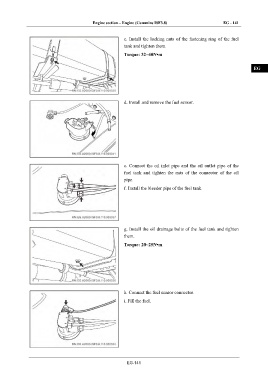

Page 657 - Foton Workshop Manual - Auman EST-M

Engine section – Engine (Cummins ISF3.8) EG - 141

IN

c. Install the locking nuts of the fastening ring of the fuel

tank and tighten them.
DI
Torque: 32~40N•m

EG

TR

d. Install and remove the fuel sensor. AX

FR

ST

BR

e. Connect the oil inlet pipe and the oil outlet pipe of the
BW
fuel tank and tighten the nuts of the connector of the oil

pipe.
EL
f. Install the bleeder pipe of the fuel tank.

g. Install the oil drainage bolts of the fuel tank and tighten
them.
Torque: 20~25N•m

h. Connect the fuel sensor connector.

i. Fill the fuel.

EG-141
