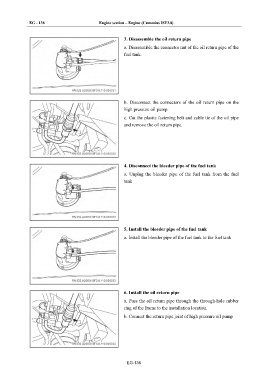

EG - 136 Engine section – Engine (Cummins ISF3.8)

3. Disassemble the oil return pipe

a. Disassemble the connector nut of the oil return pipe of the
fuel tank.

b. Disconnect the connectors of the oil return pipe on the
high pressure oil pump.
c. Cut the plastic fastening belt and cable tie of the oil pipe
and remove the oil return pipe.

4. Disconnect the bleeder pipe of the fuel tank

a. Unplug the bleeder pipe of the fuel tank from the fuel
tank

5. Install the bleeder pipe of the fuel tank

a. Install the bleeder pipe of the fuel tank to the fuel tank

6. Install the oil return pipe

a. Pass the oil return pipe through the through-hole rubber
ring of the frame to the installation location.
b. Connect the return pipe joint of high pressure oil pump

EG-136
