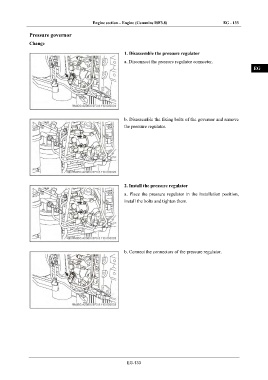

Engine section – Engine (Cummins ISF3.8) EG - 133
Pressure governor IN
Change
1. Disassemble the pressure regulator DI
a. Disconnect the pressure regulator connector.
EG
TR
AX
b. Disassemble the fixing bolts of the governor and remove FR
the pressure regulator.
ST
BR
BW
2. Install the pressure regulator EL
a. Place the pressure regulator in the installation position,
install the bolts and tighten them.
b. Connect the connectors of the pressure regulator.
EG-133
