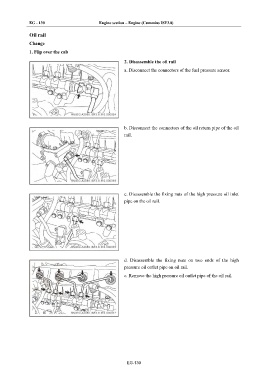

EG - 130 Engine section – Engine (Cummins ISF3.8)

Oil rail
Change
1. Flip over the cab

2. Disassemble the oil rail

a. Disconnect the connectors of the fuel pressure sensor.

b. Disconnect the connectors of the oil return pipe of the oil
rail.

c. Disassemble the fixing nuts of the high pressure oil inlet
pipe on the oil rail.

d. Disassemble the fixing nuts on two ends of the high
pressure oil outlet pipe on oil rail.
e. Remove the high pressure oil outlet pipe of the oil rail.

EG-130
