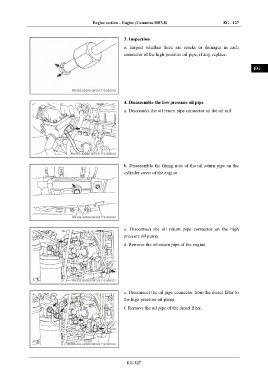

Engine section – Engine (Cummins ISF3.8) EG - 127

IN
3. Inspection

a. Inspect whether there are cracks or damages in each
DI
connector of the high pressure oil pipe, if any, replace.

EG

TR

4. Disassemble the low pressure oil pipe AX

a. Disconnect the oil return pipe connector on the oil rail.
FR

ST

BR

b. Disassemble the fixing nuts of the oil return pipe on the
BW
cylinder cover of the engine.

EL

c. Disconnect the oil return pipe connector on the high
pressure oil pump.
d. Remove the oil return pipe of the engine.

e. Disconnect the oil pipe connector from the diesel filter to
the high pressure oil pump.

f. Remove the oil pipe of the diesel filter.

EG-127
