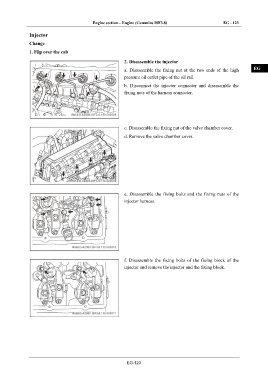

Engine section – Engine (Cummins ISF3.8) EG - 123
Injector IN
Change
1. Flip over the cab DI
2. Disassemble the injector
EG
a. Disassemble the fixing nut at the two ends of the high
pressure oil outlet pipe of the oil rail.
b. Disconnect the injector connector and disassemble the TR
fixing nuts of the harness connector.
AX
FR
c. Disassemble the fixing nut of the valve chamber cover.
d. Remove the valve chamber cover. ST
BR
BW
EL
e. Disassemble the fixing bolts and the fixing nuts of the
injector harness.
f. Disassemble the fixing bolts of the fixing block of the
injector and remove the injector and the fixing block.
EG-123
