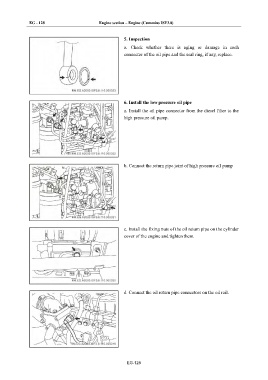

Page 644 - Foton Workshop Manual - Auman EST-M

EG - 128 Engine section – Engine (Cummins ISF3.8)

5. Inspection

a. Check whether there is aging or damage in each
connector of the oil pipe and the seal ring, if any, replace.

6. Install the low pressure oil pipe

a. Install the oil pipe connector from the diesel filter to the
high pressure oil pump.

b. Connect the return pipe joint of high pressure oil pump

c. Install the fixing nuts of the oil return pipe on the cylinder
cover of the engine and tighten them.

d. Connect the oil return pipe connectors on the oil rail.

EG-128
