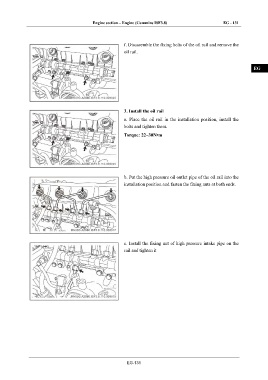

Engine section – Engine (Cummins ISF3.8) EG - 131

IN

f. Disassemble the fixing bolts of the oil rail and remove the
oil rail. DI

EG

TR

AX

3. Install the oil rail

a. Place the oil rail in the installation position, install the FR
bolts and tighten them.
Torque: 22~30N•m ST

BR

BW

b. Put the high pressure oil outlet pipe of the oil rail into the
installation position and fasten the fixing nuts at both ends. EL

c. Install the fixing nut of high pressure intake pipe on the
rail and tighten it
