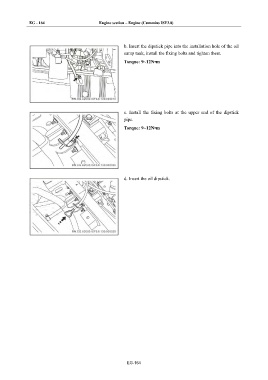

Page 680 - Foton Workshop Manual - Auman EST-M

EG - 164 Engine section – Engine (Cummins ISF3.8)

b. Insert the dipstick pipe into the installation hole of the oil
sump tank, install the fixing bolts and tighten them.
Torque: 9~12N•m

c. Install the fixing bolts at the upper end of the dipstick
pipe.
Torque: 9~12N•m

d. Insert the oil dipstick.

EG-164
