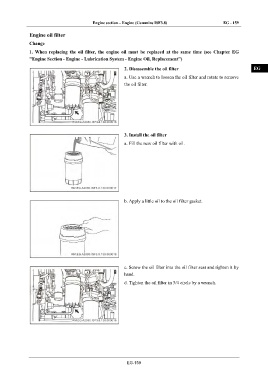

Page 675 - Foton Workshop Manual - Auman EST-M

Engine section – Engine (Cummins ISF3.8) EG - 159

Engine oil filter IN
Change
1. When replacing the oil filter, the engine oil must be replaced at the same time (see Chapter EG DI
"Engine Section - Engine - Lubrication System - Engine Oil, Replacement")

2. Disassemble the oil filter EG

a. Use a wrench to loosen the oil filter and rotate to remove
the oil filter. TR

AX

FR

3. Install the oil filter ST

a. Fill the new oil filter with oil.
BR

BW

EL

b. Apply a little oil to the oil filter gasket.

c. Screw the oil filter into the oil filter seat and tighten it by
hand.

d. Tighten the oil filter in 3/4 circle by a wrench.

EG-159
