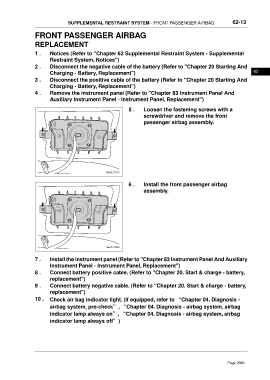

Page 2083 - Foton Workshop Manual - Tunland (AT)

SUPPLEMENTAL RESTRAINT SYSTEM - FRONT PASSENGER AIRBAG 62-13

FRONT PASSENGER AIRBAG

REPLACEMENT
1 . Notices (Refer to "Chapter 62 Supplemental Restraint System - Supplemental
Restraint System, Notices")
2 . Disconnect the negative cable of the battery (Refer to "Chapter 20 Starting And
62
Charging - Battery, Replacement")
3 . Disconnect the positive cable of the battery (Refer to "Chapter 20 Starting And
Charging - Battery, Replacement")
4 . Remove the instrument panel (Refer to "Chapter 83 Instrument Panel And
Auxiliary Instrument Panel - Instrument Panel, Replacement")
5 . Loosen the fastening screws with a
screwdriver and remove the front
passenger airbag assembly.

ftwx621033

6 . Install the front passenger airbag
assembly.

ftwx621033

7 . Install the instrument panel (Refer to "Chapter 83 Instrument Panel And Auxiliary
Instrument Panel - Instrument Panel, Replacement")
8 . Connect battery positive cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
9 . Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
10 . Check air bag indicator light. (If equipped, refer to “Chapter 04. Diagnosis -
airbag system, pre-check”, “Chapter 04. Diagnosis - airbag system, airbag
indicator lamp always on”, “Chapter 04. Diagnosis - airbag system, airbag
indicator lamp always off”)
