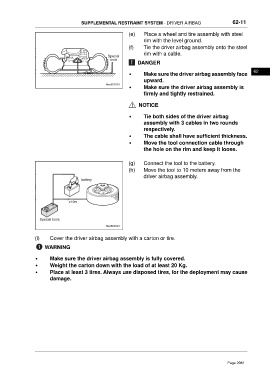

SUPPLEMENTAL RESTRAINT SYSTEM - DRIVER AIRBAG 62-11

(e) Place a wheel and tire assembly with steel
rim with the level ground.
(f) Tie the driver airbag assembly onto the steel
rim with a cable.
DANGER

62
• Make sure the driver airbag assembly face
upward.
• Make sure the driver airbag assembly is
firmly and tightly restrained.

NOTICE

• Tie both sides of the driver airbag
assembly with 3 cables in two rounds
respectively.
• The cable shall have sufficient thickness.
• Move the tool connection cable through
the hole on the rim and keep it loose.

(g) Connect the tool to the battery.
(h) Move the tool to 10 meters away from the
driver airbag assembly.

(i) Cover the driver airbag assembly with a carton or tire.
WARNING

• Make sure the driver airbag assembly is fully covered.
• Weight the carton down with the load of at least 20 Kg.
• Place at least 3 tires. Always use disposed tires, for the deployment may cause
damage.
