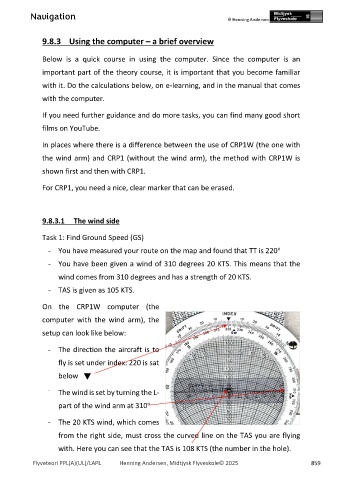

9.8.3 Using the computer – a brief overview

Below is a quick course in using the computer. Since the computer is an

important part of the theory course, it is important that you become familiar

with it. Do the calculations below, on e-learning, and in the manual that comes

with the computer.

If you need further guidance and do more tasks, you can find many good short

films on YouTube.

In places where there is a difference between the use of CRP1W (the one with

the wind arm) and CRP1 (without the wind arm), the method with CRP1W is

shown first and then with CRP1.

For CRP1, you need a nice, clear marker that can be erased.

9.8.3.1 The wind side

Task 1: Find Ground Speed (GS)

o
- You have measured your route on the map and found that TT is 220
- You have been given a wind of 310 degrees 20 KTS. This means that the

wind comes from 310 degrees and has a strength of 20 KTS.

- TAS is given as 105 KTS.

On the CRP1W computer (the

computer with the wind arm), the

setup can look like below:

- The direction the aircraft is to

fly is set under index: 220 is sat

below

- The wind is set by turning the L-

part of the wind arm at 310 o

- The 20 KTS wind, which comes

from the right side, must cross the curved line on the TAS you are flying

with. Here you can see that the TAS is 108 KTS (the number in the hole).
