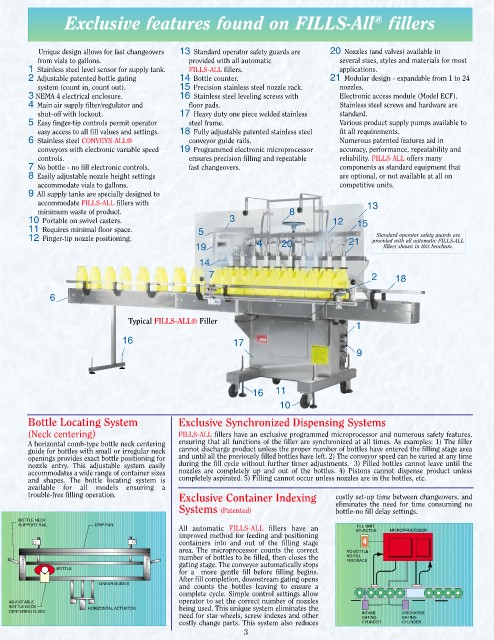

Page 1882 - Flipbook_SolidDesignSoutheast2020

Exclusive features found on FILLS-All fillers
®

Unique design allows for fast changeovers 13 Standard operator safety guards are 20 Nozzles (and valves) available in
from vials to gallons. provided with all automatic several sizes, styles and materials for most
1 Stainless steel level sensor for supply tank. FILLS-ALL fillers. applications.
2 Adjustable patented bottle gating 14 Bottle counter. 21 Modular design - expandable from 1 to 24
system (count in, count out). 15 Precision stainless steel nozzle rack. nozzles.
3 NEMA 4 electrical enclosure. 16 Stainless steel leveling screws with Electronic access module (Model ECF).
4 Main air supply filter/regulator and floor pads. Stainless steel screws and hardware are
shut-off with lockout. 17 Heavy duty one piece welded stainless standard.
5 Easy finger-tip controls permit operator steel frame. Various product supply pumps available to
easy access to all fill values and settings. 18 Fully adjustable patented stainless steel fit all requirements.
6 Stainless steel CONVEYS-ALL® conveyor guide rails. Numerous patented features aid in
conveyors with electronic variable speed 19 Programmed electronic microprocessor accuracy, performance, repeatability and
controls. ensures precision filling and repeatable reliability. FILLS-ALL offers many
7 No bottle - no fill electronic controls. fast changeovers. components as standard equipment that
8 Easily adjustable nozzle height settings are optional, or not available at all on
accommodate vials to gallons. competitive units.
9 All supply tanks are specially designed to
accommodate FILLS-ALL fillers with 13
minimum waste of product. 8
10 Portable on swivel casters. 3 12 15
11 Requires minimal floor space. 5 2
Standard operator safety guards are
12 Finger-tip nozzle positioning. 4 21 provided with all automatic FILLS-ALL
19 20 fillers shown in this brochure.
14
7 2 18

6

Typical FILLS-ALL® Filler
1
16 17
9

16 11
10
Bottle Locating System Exclusive Synchronized Dispensing Systems
(Neck centering) FILLS-ALL fillers have an exclusive programmed microprocessor and numerous safety features,
A horizontal comb-type bottle neck centering ensuring that all functions of the filler are synchronized at all times. As examples: 1) The filler
guide for bottles with small or irregular neck cannot discharge product unless the proper number of bottles have entered the filling stage area
openings provides exact bottle positioning for and until all the previously filled bottles have left. 2) The conveyor speed can be varied at any time
nozzle entry. This adjustable system easily during the fill cycle without further timer adjustments. 3) Filled bottles cannot leave until the
accommodates a wide range of container sizes nozzles are completely up and out of the bottles. 4) Pistons cannot dispense product unless
and shapes. The bottle locating system is completely aspirated. 5) Filling cannot occur unless nozzles are in the bottles, etc.
available for all models ensuring a
trouble-free filling operation.
Exclusive Container Indexing costly set-up time between changeovers, and
eliminates the need for time consuming no
Systems (Patented) bottle-no fill delay settings.
BOTTLE NECK
SUPPORT RAIL DRIP PAN FILL UNIT
All automatic FILLS-ALL fillers have an SELECTOR MICROPROCESSOR
improved method for feeding and positioning
containers into and out of the filling stage 4
area. The microprocessor counts the correct NO BOTTLE -
number of bottles to be filled, then closes the NO FILL
FEEDBACK
gating stage. The conveyor automatically stops
BOTTLE
for a more gentle fill before filling begins.
After fill completion, downstream gating opens
LINEAR GUIDES
and counts the bottles leaving to ensure a
complete cycle. Simple control settings allow
ADJUSTABLE operator to set the correct number of nozzles
BOTTLE NECK
HORIZONTAL ACTUATOR being used. This unique system eliminates the
CENTERING GUIDE INTAKE DISCHARGE
need for star wheels, screw indexes and other GATING GATING
costly change parts. This system also reduces CYLINDER CYLINDER
