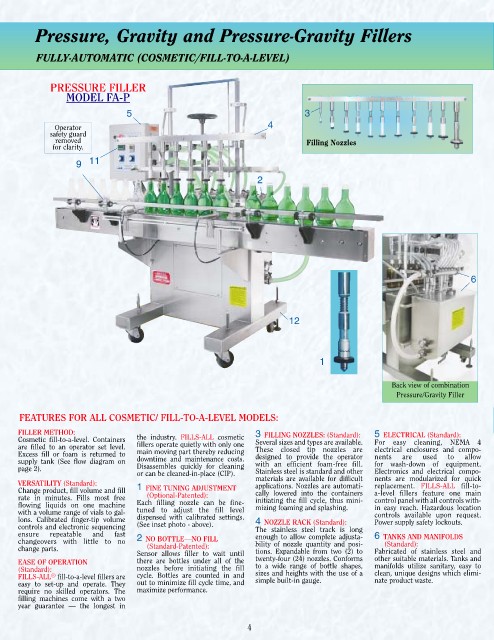

Pressure, Gravity and Pressure-Gravity Fillers

FULLY-AUTOMATIC (COSMETIC/FILL-TO-A-LEVEL)

PRESSURE FILLER
MODEL FA-P

5 3
Operator 4
safety guard
removed Filling Nozzles
for clarity.

9 11
2

6

12

1

Back view of combination
Pressure/Gravity Filler

FEATURES FOR ALL COSMETIC/ FILL-TO-A-LEVEL MODELS:
FILLER METHOD: 3 FILLING NOZZLES: (Standard): 5 ELECTRICAL (Standard):
Cosmetic fill-to-a-level. Containers the industry. FILLS-ALL cosmetic Several sizes and types are available. For easy cleaning, NEMA 4
are filled to an operator set level. fillers operate quietly with only one These closed tip nozzles are electrical enclosures and compo-
Excess fill or foam is returned to main moving part thereby reducing designed to provide the operator nents are used to allow
supply tank (See flow diagram on downtime and maintenance costs. with an efficient foam-free fill. for wash-down of equipment.
page 2). Disassembles quickly for cleaning Stainless steel is standard and other Electronics and electrical compo-
or can be cleaned-in-place (CIP).
materials are available for difficult nents are modularized for quick
VERSATILITY (Standard): applications. Nozzles are automati- replacement. FILLS-ALL fill-to-
Change product, fill volume and fill 1 FINE TUNING ADJUSTMENT cally lowered into the containers a-level fillers feature one main
rate in minutes. Fills most free (Optional-Patented): initiating the fill cycle, thus mini- control panel with all controls with-
flowing liquids on one machine Each filling nozzle can be fine- mizing foaming and splashing. in easy reach. Hazardous location
with a volume range of vials to gal- tuned to adjust the fill level controls available upon request.
lons. Calibrated finger-tip volume dispensed with calibrated settings. 4 NOZZLE RACK (Standard): Power supply safety lockouts.
controls and electronic sequencing (See inset photo - above). The stainless steel track is long
ensure repeatable and fast enough to allow complete adjusta- 6 TANKS AND MANIFOLDS
changeovers with little to no 2 NO BOTTLE—NO FILL bility of nozzle quantity and posi- (Standard):
change parts. (Standard-Patented): tions. Expandable from two (2) to Fabricated of stainless steel and
Sensor allows filler to wait until
EASE OF OPERATION there are bottles under all of the twenty-four (24) nozzles. Conforms other suitable materials. Tanks and
to a wide range of bottle shapes,
manifolds utilize sanitary, easy to
(Standard): nozzles before initiating the fill sizes and heights with the use of a clean, unique designs which elimi-
®
FILLS-ALL fill-to-a-level fillers are cycle. Bottles are counted in and simple built-in gauge. nate product waste.
easy to set-up and operate. They out to minimize fill cycle time, and
require no skilled operators. The maximize performance.
filling machines come with a two
year guarantee — the longest in
4
