managing WorkFloW WiTh WorkseTs 183

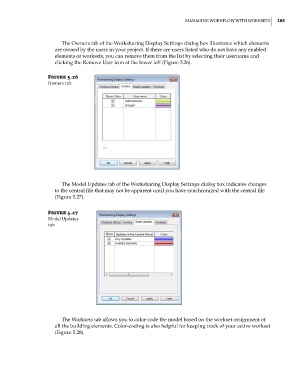

The Owners tab of the Worksharing Display Settings dialog box illustrates which elements
are owned by the users in your project. If there are users listed who do not have any enabled
elements or worksets, you can remove them from the list by selecting their username and
clicking the Remove User icon at the lower left (Figure 5.26).

Figure 5.26
owners tab

The Model Updates tab of the Worksharing Display Settings dialog box indicates changes
to the central file that may not be apparent until you have synchronized with the central file
(Figure 5.27).

Figure 5.27
model updates
tab

The Worksets tab allows you to color-code the model based on the workset assignment of
all the building elements. Color-coding is also helpful for keeping track of your active workset
(Figure 5.28).
