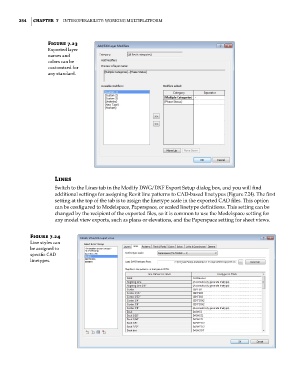

254 | ChaptEr 7 InteroperabIlIty: WorkIng MultIplatforM
Figure 7.23
exported layer
names and
colors can be
customized for
any standard.
Lines
Switch to the Lines tab in the Modify DWG/DXF Export Setup dialog box, and you will find
additional settings for assigning Revit line patterns to CAD-based linetypes (Figure 7.24). The first
setting at the top of the tab is to assign the linetype scale in the exported CAD files. This option
can be configured to Modelspace, Paperspace, or scaled linetype definitions. This setting can be
changed by the recipient of the exported files, so it is common to use the Modelspace setting for
any model view exports, such as plans or elevations, and the Paperspace setting for sheet views.
Figure 7.24
line styles can
be assigned to
specific CaD
linetypes.
