P. 284
250 | ChaptEr 7 InteroperabIlIty: WorkIng MultIplatforM

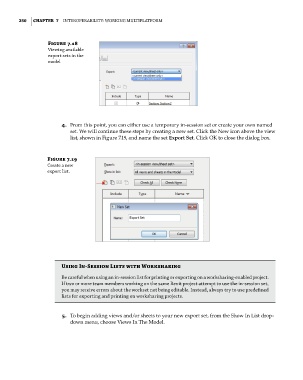

Figure 7.18
Viewing available
export sets in the
model
4. From this point, you can either use a temporary in-session set or create your own named
set. We will continue these steps by creating a new set. Click the New icon above the view
list, shown in Figure 7.19, and name the set Export Set. Click OK to close the dialog box.
Figure 7.19
Create a new
export list.
Using In-Session Lists with Worksharing
be careful when using an in-session list for printing or exporting on a worksharing-enabled project.
If two or more team members working on the same revit project attempt to use the in-session set,
you may receive errors about the workset not being editable. Instead, always try to use predefined
lists for exporting and printing on worksharing projects.
5. To begin adding views and/or sheets to your new export set, from the Show In List drop-
down menu, choose Views In The Model.
c07.indd 250 5/3/2014 10:48:59 AM
