unDeRstanDing analYtiC Visualization 435

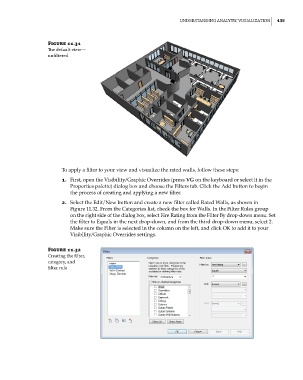

Figure 11.31
The default view—
unfiltered

To apply a filter to your view and visualize the rated walls, follow these steps:
1. First, open the Visibility/Graphic Overrides (press VG on the keyboard or select it in the
Properties palette) dialog box and choose the Filters tab. Click the Add button to begin
the process of creating and applying a new filter.
2. Select the Edit/New button and create a new filter called Rated Walls, as shown in
Figure 11.32. From the Categories list, check the box for Walls. In the Filter Rules group
on the right side of the dialog box, select Fire Rating from the Filter By drop-down menu. Set
the filter to Equals in the next drop-down, and from the third drop-down menu, select 2.
Make sure the Filter is selected in the column on the left, and click OK to add it to your
Visibility/Graphic Overrides settings.

Figure 11.32
Creating the filter,
category, and
filter rule
