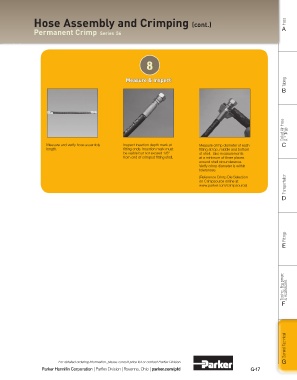

Hose Assembly and Crimping (cont.) A Hose

Permanent Crimp Series 56

8

Measure & Inspect Tubing
B

Coiled Air Hose & Fittings

Measure and verify hose assembly Inspect insertion depth mark at Measure crimp diameter of each C
length. fitting ends. Insertion mark must fitting at top, middle and bottom
be visible but not exceed 1/8" of shell. Take measurements
from end of crimped fitting shell. at a minimum of three places
around shell circumference.
Verify crimp diameter is within
tolerances.
(Reference Crimp Die Selection
on Crimpsource online at
www.parker.com/crimpsource) Transportation
