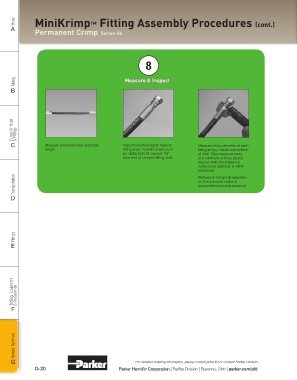

Hose MiniKrimp™ Fitting Assembly Procedures (cont.)
A
Permanent Crimp Series 56

8

Tubing Measure & Inspect
B

Coiled Air Hose & Fittings

C Measure and verify hose assembly Inspect insertion depth mark at Measure crimp diameter of each
length. fitting ends. Insertion mark must fitting at top, middle and bottom
be visible but not exceed 1/8" of shell. Take measurements
from end of crimped fitting shell. at a minimum of three places
around shell circumference.
Verify crimp diameter is within
tolerances.
Transportation (Reference Crimp Die Selection
on Crimpsource online at
www.parker.com/crimpsource)

D

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
