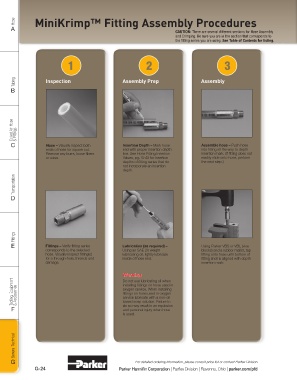

Hose MiniKrimp™ Fitting Assembly Procedures
A
CAUTION: There are several different sections for Hose Assembly
and Crimping. Be sure you are in the section that corresponds to
the fitting series you are using. See Table of Contents for listing.

1 2 3

Tubing Inspection Assembly Prep Assembly
B

Coiled Air Hose & Fittings

C Hose – Visually inspect both Insertion Depth – Mark hose Assemble hose – Push hose
ends of hose for square cut. end with proper insertion depth into fitting all the way to depth
Remove any burrs, loose fibers line. See Hose Fitting Insertion insertion mark. (If fitting does not
or wires. Values, pg. G-43 for insertion readily slide onto hose, perform
depths of fitting series that do the next step.)
not incorporate an insertion
depth.
Transportation

D

Fittings
E Fittings – Verify fitting series Lubrication (as required) – Using Parker VBS or VBL (vise
corresponds to the selected Using an SAE 20 weight blocks) and a rubber mallet, tap
hose. Visually inspect fitting(s) lubricating oil, lightly lubricate fitting onto hose until bottom of
for a through-hole, threads and inside of hose end. fitting shell is aligned with depth
damage. insertion mark.

Warning
Tooling, Equipment & Accessories installing fittings on hose used in
Do not use lubricating oil when
oxygen service. When installing
fittings on hose used in oxygen
service lubricate with a non-oil
do so may result in an explosion
F based soap solution. Failure to
and personal injury when hose
is used.

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
