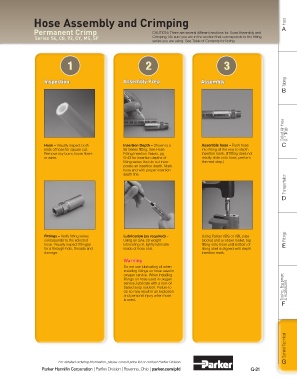

Page 367 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose Assembly and Crimping Hose

Permanent Crimp CAUTION: There are several different sections for Hose Assembly and A
Series 54, CG, 92, CY, MS, SF Crimping. Be sure you are in the section that corresponds to the fitting
series you are using. See Table of Contents for listing.

1 2 3

Inspection Assembly Prep Assembly Tubing
B

Coiled Air Hose & Fittings

Hose – Visually inspect both Insertion Depth – Shown is a Assemble hose – Push hose C
ends of hose for square cut. 56 Series fitting. See Hose into fitting all the way to depth
Remove any burrs, loose fibers Fitting Insertion Values, pg. insertion mark. (If fitting does not
or wires. G-43 for insertion depths of readily slide onto hose, perform
fitting series that do not incor- the next step.)
porate an insertion depth. Mark
hose end with proper insertion
depth line.
Transportation

D

Fittings – Verify fitting series Lubrication (as required) – Using Parker VBS or VBL (vise Fittings
corresponds to the selected Using an SAE 20 weight blocks) and a rubber mallet, tap
hose. Visually inspect fitting(s) lubricating oil, lightly lubricate fitting onto hose until bottom of E
for a through-hole, threads and inside of hose end. fitting shell is aligned with depth
damage. insertion mark.
Warning
Do not use lubricating oil when
installing fittings on hose used in
oxygen service. When installing
fittings on hose used in oxygen
service, lubricate with a non-oil
based soap solution. Failure to Tooling, Equipment
do so may result in an explosion & Accessories
and personal injury when hose
is used.
F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
