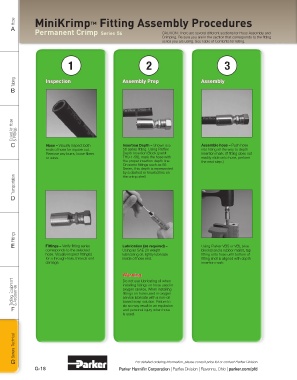

Hose MiniKrimp™ Fitting Assembly Procedures
A
Permanent Crimp Series 56 CAUTION: There are several different sections for Hose Assembly and
Crimping. Be sure you are in the section that corresponds to the fitting
series you are using. See Table of Contents for listing.

1 2 3

Tubing Inspection Assembly Prep Assembly
B

Coiled Air Hose & Fittings

C Hose – Visually inspect both Insertion Depth – Shown is a Assemble hose – Push hose
ends of hose for square cut. 56 series fitting. Using Parflex into fitting all the way to depth
Remove any burrs, loose fibers Depth Insertion Block (part# insertion mark. (If fitting does not
or wires. TH9-1-56), mark the hose with readily slide onto hose, perform
the proper insertion depth line. the next step.)
On some fittings such as 56
Series, this depth is represented
by a dashed or knurled line on
the crimp shell.
Transportation

D

Fittings
E Fittings – Verify fitting series Lubrication (as required) – Using Parker VBS or VBL (vise
corresponds to the selected Using an SAE 20 weight blocks) and a rubber mallet, tap
hose. Visually inspect fitting(s) lubricating oil, lightly lubricate fitting onto hose until bottom of
for a through-hole, threads and inside of hose end. fitting shell is aligned with depth
damage. insertion mark.

Warning
Tooling, Equipment & Accessories installing fittings on hose used in
Do not use lubricating oil when
oxygen service. When installing
fittings on hose used in oxygen
service lubricate with a non-oil
do so may result in an explosion
F based soap solution. Failure to
and personal injury when hose
is used.

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
