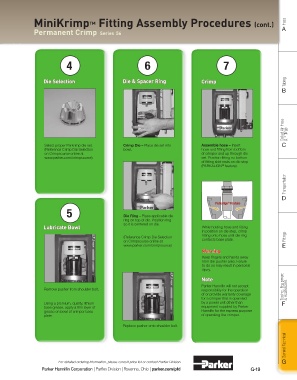

Page 365 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

MiniKrimp™ Fitting Assembly Procedures (cont.) A Hose

Permanent Crimp Series 56

4 6 7

Die Selection Die & Spacer Ring Crimp Tubing
B

Coiled Air Hose & Fittings

Select proper Parkrimp die set. Crimp Die – Place die set into Assemble hose – Insert C
(Reference Crimp Die Selection bowl. hose and fitting from bottom
on Crimpsource online at of crimper and up through die
www.parker.com/crimpsource) set. Position fitting so bottom
of fitting skirt rests on die step
®
(PARKALIGN feature).
Transportation

Pakalign Feature
®
D
Parkalign Feature
®
5 Die Ring – Place applicable die
ring on top of die. Position ring
so it is centered on die.
Lubricate Bowl While holding hose and fitting
in position on die step, crimp
(Reference Crimp Die Selection fitting onto hose until die ring Fittings
on Crimpsource online at contacts base plate.
www.parker.com/crimpsource) E
Warning
Keep fingers and hands away
from die-pusher area. Failure
to do so may result in personal
injury.
Note
Parker Hannifin will not accept Tooling, Equipment
Remove pusher from shoulder bolt. responsibility for the operation & Accessories
of or provide warranty coverage
for a crimper that is operated
Using a premium, quality, lithium- by a power unit other than F
base grease, apply a thin layer of equipment supplied by Parker
grease on bowl of crimper base Hannifin for the express purpose
plate. of operating the crimper.
Replace pusher onto shoulder bolt.

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
