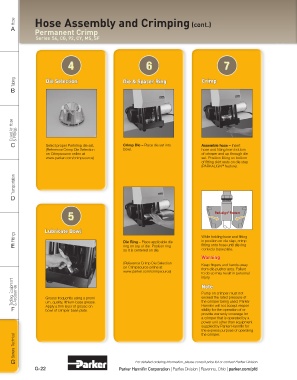

Page 368 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose Hose Assembly and Crimping (cont.)
A Permanent Crimp

Series 54, CG, 92, CY, MS, SF

4 6 7

Tubing Die Selection Die & Spacer Ring Crimp
B

Coiled Air Hose & Fittings

C Select proper Parkrimp die set. Crimp Die – Place die set into Assemble hose – Insert
(Reference Crimp Die Selection bowl. hose and fitting from bottom
on Crimpsource online at of crimper and up through die
www.parker.com/crimpsource) set. Position fitting so bottom
of fitting skirt rests on die step
(PARKALIGN feature).
®
Transportation

D

5 Parkalign Feature
®

Lubricate Bowl
Fittings While holding hose and fitting
in position on die step, crimp
E Die Ring – Place applicable die fitting onto hose until die ring
ring on top of die. Position ring
so it is centered on die. contacts base plate.
Warning
(Reference Crimp Die Selection Keep fingers and hands away
on Crimpsource online at from die-pusher area. Failure
www.parker.com/crimpsource)
to do so may result in personal
injury.
Tooling, Equipment & Accessories Grease frequently using a premi- Note

Pump on crimper must not
exceed the rated pressure of
Hannifin will not accept respon-
Apply a thin layer of grease on
F um, quality, lithium-base grease. the crimper being used. Parker
sibility for the operation of or
bowl of crimper base plate.
provide warranty coverage for
a crimper that is operated by a
power unit other than equipment
supplied by Parker Hannifin for
the express purpose of operating
the crimper.
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
