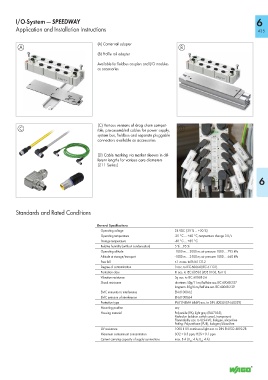

Page 437 - Wago_AutomationTechnology_Volume3_2015_US.pdf

I/O-System — SPEEDWAY 6
Application and Installation Instructions 435

(A) Carrier rail adapter
A B
(B) Profile rail adapter

Available for fieldbus couplers and I/O modules
as accessories

(C) Various versions of drag chain compat-
C ible, pre-assembled cables for power supply, D
system bus, fieldbus and separate pluggable
connectors available as accessories

(D) Cable marking via marker sleeves in dif-
ferent lengths for various core diameters
(211 Series)

6

Standards and Rated Conditions

General Specifications
Operating voltage 24 VDC (-25 % … +30 %)
Operating temperature -25 °C … +60 °C; temperature change 3 K/s
Storage temperature -40 °C … +85 °C
Relative humidity (without condensation) 5 % …95 %
Operating altitude -1000 m … 2000 m; air pressure 1080 … 795 hPa
Altitude at storage/transport -1000 m … 3500 m; air pressure 1080 … 660 hPa
Free fall ≤ 1 m acc. to EN 61131-2
Degree of contamination 3 acc. to IEC 60664 (IEC 61131)
Protection class III acc. to IEC 60536 (VDE 0106, Part 1)
Vibration resistance 5g acc. to IEC 60068-2-6
Shock resistance short-term: 50g/11 ms/half-sine acc. IEC 60068-2-27
long-term: 30g/6 ms/half-sine acc. IEC 60068-2-29
EMC immunity to interference EN 61000-6-2
EMC emission of interference EN 61000-6-4
Protection type IP67 (NEMA 6&6P) acc. to DIN 40050 (EN 60529)
Mounting position any
Housing material Polyamide (PA), light gray (RAL7035);
Makrolon (address switch cover), transparent;
Flammability acc. to UL94-V0; halogen, silicon-free
Potting: Polyurethane (PUR), halogen/silicon-free
UV resistance 1000 h UV continuous light acc. to DIN EN ISO 4892-2B
Maximum contaminant concentration SO2 < 0.5 ppm; H2S < 0.1 ppm
Current carrying capacity of supply connections max. 8 A (U : 4 A; U : 4 A)
LS A
