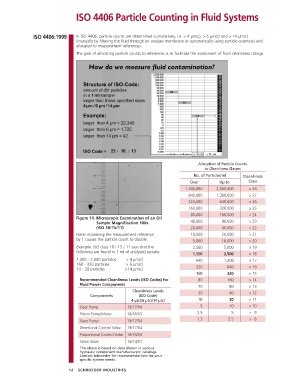

ISO 4406 Particle Counting in Fluid Systems

ISO 4406:1999 In ISO 4406, particle counts are determined cumulatively, i.e. > 4 µm(c), > 6 µm(c) and > 14 µm(c)
(manually by filtering the fluid through an analysis membrane or automatically using particle counters) and
allocated to measurement references.
The goal of allocating particle counts to references is to facilitate the assessment of fluid cleanliness ratings.

Allocation of Particle Counts
to Cleanliness Classes
No. of Particles/ml Cleanliness
Over Up to Class
1,300,000 2,500,000 > 28
640,000 1,300,000 > 27
320,000 640,000 > 26
160,000 320,000 > 25
80,000 160,000 > 24
Figure 14. Microscopic Examination of an Oil
Sample Magnification 100x 40,000 80,000 > 23
(ISO 18/15/11) 20,000 40,000 > 22
Note: increasing the measurement reference 10,000 20,000 > 21
by 1 causes the particle count to double. 5,000 10,000 > 20
Example: ISO class 18 / 15 / 11 says that the 2,500 5,000 > 19
following are found in 1 ml of analyzed sample: 1,300 2,500 > 18
1,300 - 2,500 particles > 4 µm(c) 640 1,300 > 17
160 - 320 particles > 6 µm(c) 320 640 > 16
10 - 20 particles >14 µm(c)
160 320 > 15
Recommended Cleanliness Levels (ISO Codes) for 80 160 > 14
Fluid Power Components 40 80 > 13
Cleanliness Levels
Components (ISO Code) 20 40 > 12
4 µ(c)/6 µ(c)/14 µ(c) 10 20 > 11
Gear Pump 19/17/14 5 10 > 10
Piston Pump/Motor 18/16/13 2.5 5 > 9
Vane Pump 19/17/14 1.3 2.5 > 8
Directional Control Valve 19/17/14
Proportional Control Valve 18/16/13
Servo Valve 16/14/11
The above is based on data shown in various
hydraulic component manufacturers’ catalogs.
Contact Schroeder for recommendations for your
specific system needs.
