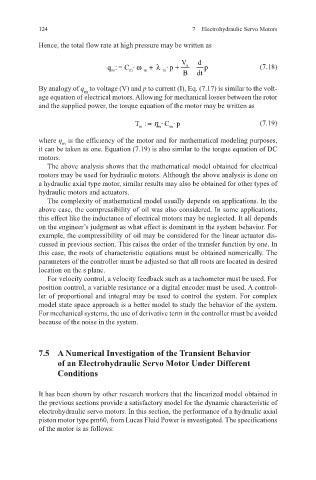

            Hence, the total flow rate at high pressure may be written as
                                                   V    d
                               q : = C ·   ω  m  +λ  m  o  p             (7.18)
                                               · p +
                                     m
                                m
                                                    B   dt
            By analogy of q  to voltage (V) and p to current (I), Eq. (7.17) is similar to the volt-
                        m
            age equation of electrical motors. Allowing for mechanical losses between the rotor
            and the supplied power, the torque equation of the motor may be written as

                                       T : η=  m ·C · p                  (7.19)
                                        m
                                                m
            where η  is the efficiency of the motor and for mathematical modeling purposes,
                  m
            it can be taken as one. Equation (7.19) is also similar to the torque equation of DC
            motors.
              The above analysis shows that the mathematical model obtained for electrical
            motors may be used for hydraulic motors. Although the above analysis is done on
            a hydraulic axial type motor, similar results may also be obtained for other types of
            hydraulic motors and actuators.
              The complexity of mathematical model usually depends on applications. In the
            above case, the compressibility of oil was also considered. In some applications,
            this effect like the inductance of electrical motors may be neglected. It all depends
            on the engineer’s judgment as what effect is dominant in the system behavior. For
            example, the compressibility of oil may be considered for the linear actuator dis-
            cussed in previous section. This raises the order of the transfer function by one. In
            this case, the roots of characteristic equations must be obtained numerically. The
            parameters of the controller must be adjusted so that all roots are located in desired
            location on the s plane.
              For velocity control, a velocity feedback such as a tachometer must be used. For
            position control, a variable resistance or a digital encoder must be used. A control-
            ler of proportional and integral may be used to control the system. For complex
            model state space approach is a better model to study the behavior of the system.
            For mechanical systems, the use of derivative term in the controller must be avoided
            because of the noise in the system.



            7.5   A Numerical Investigation of the Transient Behavior
                 of an Electrohydraulic Servo Motor Under Different
                 Conditions


            It has been shown by other research workers that the linearized model obtained in
            the previous sections provide a satisfactory model for the dynamic characteristic of
            electrohydraulic servo motors. In this section, the performance of a hydraulic axial
            piston motor type pm60, from Lucas Fluid Power is investigated. The specifications
            of the motor is as follows:
