Adding Sensors
• HydroTracII
• TurboGuardII – used for both the original TurboGuardII and the GuardII+ SSC PD
technology.

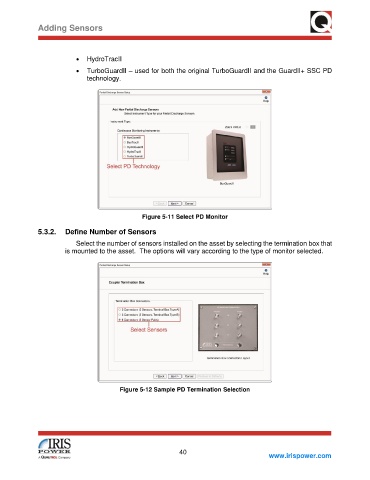

Figure 5-11 Select PD Monitor
5.3.2. Define Number of Sensors
Select the number of sensors installed on the asset by selecting the termination box that
is mounted to the asset. The options will vary according to the type of monitor selected.
Figure 5-12 Sample PD Termination Selection
