Reference Guide                                                         Fire Strategy



                   •   The storage amounts to more than 1/3rd of the total floor area of the building or

                       compartment.

               When the above do not apply, the storage is deemed ancillary to the use of the shop, the

               two areas need not be fire separated from one another. The schematic below can be used
               as a guide to determine whether a fire rated partition is required between the retail space
               and the back-of-house area.

























               The graphic                                                                  below

               illustrates the                                                              proposed
               floor areas of                                                               the model

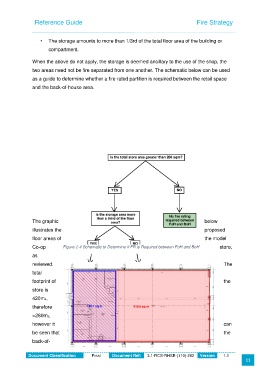

               Co-op         Figure 2-4 Schematic to Determine if FR is Required between FoH and BoH   store,
               as
               reviewed.                                                                            The

               total
               footprint of                                                                         the

               store is
               420m2,
               therefore

               >280m2,
               however it                                                                           can
               be seen that                                                                         the

               back-of-


              Document Classification     Final    Document Ref:   3.1-RCS-RHSE-(110)-262   Version   1.1
