Part VII: Advanced Materials
Thin Seam Display, and Thick Seam Display. By making the seams visible, you can easily tell where the tex-
tures don’t match the object’s creases.

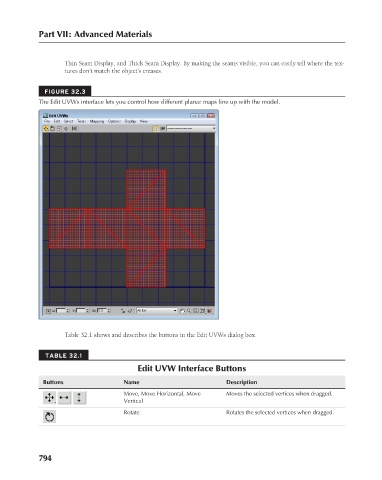

FIGURE 32.3
The Edit UVWs interface lets you control how different planar maps line up with the model.

Table 32.1 shows and describes the buttons in the Edit UVWs dialog box.

TABLE 32.1
Edit UVW Interface Buttons
Buttons Name Description
Move, Move Horizontal, Move Moves the selected vertices when dragged.
Vertical
Rotate Rotates the selected vertices when dragged.

794
