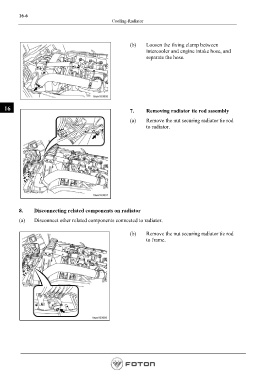

16-6
Cooling-Radiator
(b) Loosen the fixing clamp between
intercooler and engine intake hose, and
separate the hose.
16 7. Removing radiator tie rod assembly
(a) Remove the nut securing radiator tie rod
to radiator.
8. Disconnecting related components on radiator
(a) Disconnect other related components connected to radiator.
(b) Remove the nut securing radiator tie rod
to frame.
