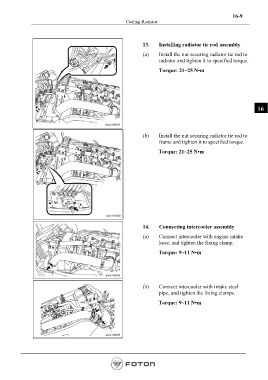

P. 609
16-9
Cooling-Radiator
13. Installing radiator tie rod assembly
(a) Install the nut securing radiator tie rod to
radiator and tighten it to specified torque.
Torque: 21~25 N•m
16
(b) Install the nut securing radiator tie rod to
frame and tighten it to specified torque.
Torque: 21~25 N•m
14. Connecting intercooler assembly
(a) Connect intercooler with engine intake
hose, and tighten the fixing clamp.
Torque: 9~11 N•m
(b) Connect intercooler with intake steel
pipe, and tighten the fixing clamps.
Torque: 9~11 N•m
