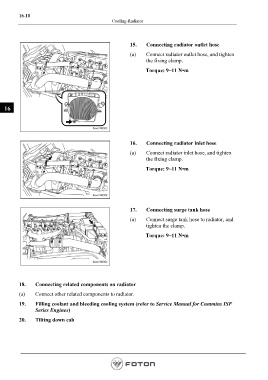

Page 610 - Workshop Manual - Aumark (BJ1051)
P. 610
16-10
Cooling-Radiator
15. Connecting radiator outlet hose
(a) Connect radiator outlet hose, and tighten
the fixing clamp.
Torque: 9~11 N•m
16
16. Connecting radiator inlet hose
(a) Connect radiator inlet hose, and tighten
the fixing clamp.
Torque: 9~11 N•m
17. Connecting surge tank hose
(a) Connect surge tank hose to radiator, and
tighten the clamp.
Torque: 9~11 N•m
18. Connecting related components on radiator
(a) Connect other related components to radiator.
19. Filling coolant and bleeding cooling system (refer to Service Manual for Cummins ISF
Series Engines)
20. Tilting down cab
Page 610
