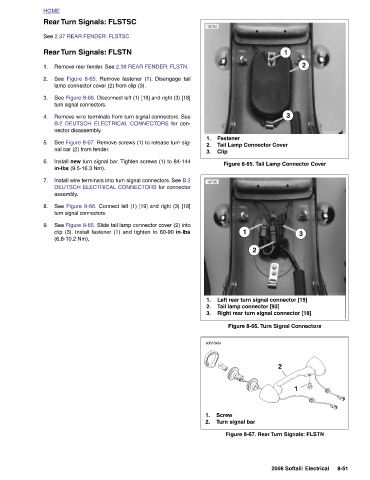

Page 1090 - 2006 HARLEY FLSTCI SERVICE MANUAL

8-51

2 3 1 2006 Softail: Electrical

3
Tail Lamp Connector Cover 1 2 Left rear turn signal connector [19] Tail lamp connector [93] Right rear turn signal connector [18]
1 Figure 8-65. Tail Lamp Connector Cover Figure 8-66. Turn Signal Connectors 2 Figure 8-67. Rear Turn Signals: FLSTN

Fastener Clip Screw Turn signal bar

10734 1. 2. 3. 10735 1. 2. 3. s0616x8x 1. 2.

Rear Turn Signals: FLSTSC See 2.37 REAR FENDER: FLSTSC Rear Turn Signals: FLSTN Remove rear fender. See 2.38 REAR FENDER: FLSTN. See Figure 8-65. Remove fastener (1). Disengage tail lamp connector cover (2) from clip (3). See Figure 8-66. Disconnect left (1) [19] and right (3) [18] turn signal connectors. Remove wire terminals from turn signal connectors. See B.2 DEUTSCH ELECTRICAL CONNECTORS for con- nector disassembly. See Figure 8-67. Remove screws (1) to release turn sig- nal bar (2) from fender. Install new turn signal bar. Tighten screws (1) to 84-144 in-lbs (9.5-16.3 Nm). Install wire terminals into turn signal connectors. See B.2 DEUT

HOME 1. 2. 3. 4. 5. 6. 7. assembly. 8. 9.
