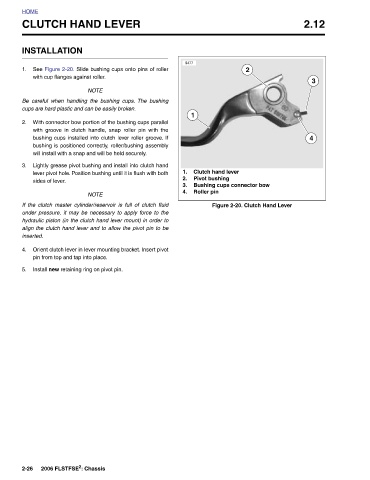

                            2                                   Bushing cups connector bow  Figure 2-20. Clutch Hand Lever
                                                            Clutch hand lever  Pivot bushing  Roller pin







                          9477            1
                                                            1.  2.  3.  4.







              CLUTCH HAND LEVER










                      INSTALLATION See Figure 2-20. Slide bushing cups onto pins of roller with cup flanges against roller.  NOTE Be careful when handling the bushing cups.  The bushing cups are hard plastic and can be easily broken. With connector bow portion of the bushing cups parallel with groove in clutch handle, snap roller pin with the bushing cups installed into clutch lever roller groove. If bushing is positioned correctly, roller/bushing assembly will install with a snap and will be held securely. Lightly grease pivot bushing and install into clutch hand lever pivot hole. Position bushing until it is flush with both  sides of lever.  NOTE If the clutch mas
